Working principle:Sync motor drives paddle; paddle stall triggers relay contact
Process pressure:0.5 ~1.8 bar absolute
Medium temperature:-20℃ ~ +80℃
Min medium density:≥100 g/L
Process connection:G1½ thread
Contact:SPDT change-over relay
Power supply:AC230V
Protection class:IP65

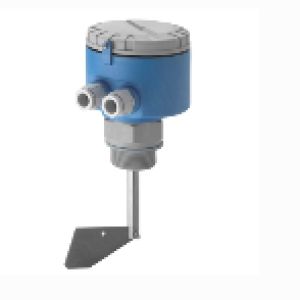

Level switch E&H FTE-30-AAB1 Specifications
| Working principle | Sync motor drives paddle; paddle stall triggers relay contact |
|---|---|
| Process pressure | 0.5 ~1.8 bar absolute |
| Medium temperature | -20℃ ~ +80℃ |
| Min medium density | ≥100 g/L |
| Process connection | G1½ thread |
| Contact | SPDT change-over relay |
| Power supply | AC230V |
| Protection class | IP65 |
About the Level switch E&H FTE-30-AAB1
The Level switch E&H FTE-30-AAB1 is a electrical products used in industrial automation, control and power systems. It is rated at Working principle Sync motor drives paddle; paddle stall triggers relay contact, Process pressure 0.5 ~1.8 bar absolute, Medium temperature -20℃ ~ +80℃. This electrical products is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number Level switch E&H FTE-30-AAB1 for accurate procurement and cross-referencing.
Why source the Level switch E&H FTE-30-AAB1 from HDE123
- Verified part number: every Level switch E&H FTE-30-AAB1 is checked against its manufacturer specification before shipment.
- 8 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the Level switch E&H FTE-30-AAB1
To order the Level switch E&H FTE-30-AAB1, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
