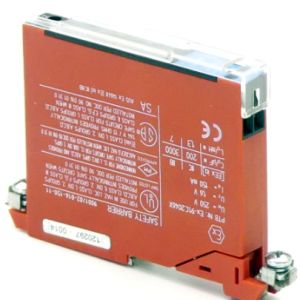

Part No: 83 17 710
Brand: R.STAHL (Germany)
Product Name: Single-channel passive Zener intrinsically safe barrier
Electrical parameters
Channel: Single channel
Rated voltage: 24 VDC
Explosion-proof grade: Ex ia IIC T4
Circuit structure: Zener diode + fixed current limiting resistor passive circuit
Max short-circuit output current: 15 mA
Grounding mode: Negative pole grounding
Applicable signals: Proximity switch, dry contact, low-current field sensor signals
Maximum transmission frequency: ≤ 50 kHz
Mechanical & environmental parameters
Overall dimension: 12.5 mm × 114 mm × 62 mm
Mounting method: 35 mm standard DIN rail installation
Protection class: IP20 (cabinet internal use only)
Operating temperature range: -20 ℃ ~ +60 ℃
Certifications: ATEX, IECEx, CE, RoHS, UL
83 17 710，R.STAHL (Germany) Specifications
| Part No | 83 17 710 |
|---|---|
| Brand | R.STAHL (Germany) |
| Product Name | Single-channel passive Zener intrinsically safe barrier |
| Channel | Single channel |
| Rated voltage | 24 VDC |
| Explosion-proof grade | Ex ia IIC T4 |
| Circuit structure | Zener diode + fixed current limiting resistor passive circuit |
| Max short-circuit output current | 15 mA |
| Grounding mode | Negative pole grounding |
| Applicable signals | Proximity switch, dry contact, low-current field sensor signals |
| Maximum transmission frequency | ≤ 50 kHz |
| Overall dimension | 12.5 mm × 114 mm × 62 mm |
| Mounting method | 35 mm standard DIN rail installation |
| Protection class | IP20 (cabinet internal use only) |
| Operating temperature range | -20 ℃ ~ +60 ℃ |
| Certifications | ATEX, IECEx, CE, RoHS, UL |
About the 83 17 710，R.STAHL (Germany)
The R.STAHL (Germany) 83 17 710，R.STAHL (Germany) is a electrical products used in industrial automation, control and power systems. It is rated at Part No 83 17 710, Brand R.STAHL (Germany), Product Name Single-channel passive Zener intrinsically safe barrier. Manufactured by R.STAHL (Germany), this electrical products is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number 83 17 710，R.STAHL (Germany) for accurate procurement and cross-referencing.
Why source the 83 17 710，R.STAHL (Germany) from HDE123
- Verified part number: every 83 17 710，R.STAHL (Germany) is checked against its manufacturer specification before shipment.
- 16 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the 83 17 710，R.STAHL (Germany)
To order the R.STAHL (Germany) 83 17 710，R.STAHL (Germany), add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
