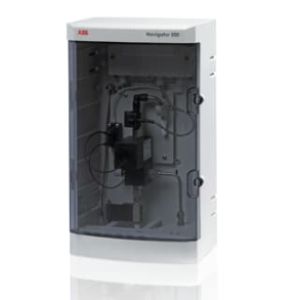

AWT540.A.1.A.1.B1.Y0.Y0.Y0.Y 0-..M5.U1 -ABB dissolved oxygen transmitter
– Part No.: AWT540.A.1.A.1.B1.Y0.Y0.Y0.Y0..M5.U1
– Compatible wet-section: ADS550 low-level dissolved oxygen
– Max channels: 4 digital Navigator 550 wet-sections
– Power supply: 90 ~ 260 V AC, 50/60 Hz
– Power consumption: ＜10 W
– Display: Color TFT screen
– Analog output: 2 pcs standard 0–22 mA, galvanic isolation, max load 750 Ω @20 mA
– Digital I/O: 6 programmable digital I/O
– Communication: Modbus RTU (base, no optional fieldbus card for this code)
– Enclosure: Wall mount, IP66 / NEMA 4X
– Ambient temperature: 0 ~ +55 ℃
– Storage temperature: -20 ~ +70 ℃
– Humidity: ≤95% RH, non-condensing
– Application: Power plant boiler feed water, condensate, ultra-pure water, low ppb dissolved oxygen monitoring
– Measurement data comes digitally from ADS550 wet-section
#### Weight
**Net Weight: 1.5 kg / 3.3 lbs**eero
Gross weight (with packing): approx 2.2 kg / 4.85 lbs
