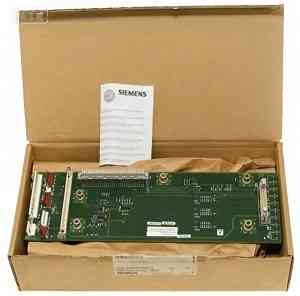

Brand new original 6SE70 inverter IVI board adapter board 6SE7031-2HF84-1BG0 ，6SE7031-2HF84-1BG0 Siemens

Parameter Category Parameter Value
Basic Information Ordering Number 6SE7031-2HF84-1BG0
Product Name Inverter Interface Board IVI (Spare Part)
Product Series SIMOVERT MASTERDRIVES
Manufacturer Siemens
Net Weight ~0.5 kg
Dimensions (L×W×H) 330 mm × 102 mm × 51 mm
Protection Class IP20 (when installed in cabinet)
Product Lifecycle Discontinued (since 30.09.2020)
Certifications CE, UL
Electrical Performance Power Supply 24 V DC (control circuit)
Power Consumption ≤ 10 W
Communication Interface RS485, PROFIBUS DP (compatible with CBP2 module)
Input Signal Level 0-24 V DC (digital input)
Output Signal Level 0-24 V DC (digital output, max 2 A)
Insulation Voltage 2.5 kV AC (signal – power isolation)
Operating Frequency 0-100 Hz (signal transmission)
Mechanical Features Mounting Type DIN rail mounting (compatible with MASTERDRIVES cabinet)
Connection Type Screw terminals (for signal and power lines)
Housing Material Metal – clad (EMI shielding)
Cooling Method Natural convection
Environmental Conditions Operating Temperature 0°C to +40°C
Storage Temperature -25°C to +70°C
Operating Humidity 5% – 95% RH (non – condensing)
Vibration Resistance 10-500 Hz, 1 g acceleration
Shock Resistance 30 g acceleration (11 ms duration)
Functional Features Core Function Inverter – control unit communication, signal conversion, system status monitoring
Compatible System SIMOVERT MASTERDRIVES series AC drives
Signal Processing Digital/analog signal conversion, error signal detection
Protection Functions Over – voltage, over – current, short – circuit protection for interface circuits
Application Scenario Spare part for MASTERDRIVES inverter control system, industrial drive equipment maintenance
