Electrical
Contact layout: 2NO + 2NC instantaneous contacts
Thermal current Ith: 16A, rated insulation voltage Ui: 690V
AC-15 load: 6A@127V, 4A@230V, 3A@400V, 2A@690V
DC-13 load: 6A@24V, 0.55A@125V
Screw terminals, wire range 0.5–2.5mm²

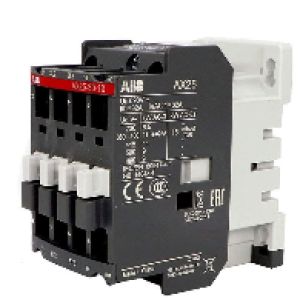

Compatible: AX09~AX150 contactors
Mechanical & Weight
Dimension: 43(W) × 40(H) × 36(D) mm
Protection: IP20 (cabinet internal)
Operating temp: -25℃ ~ +70℃

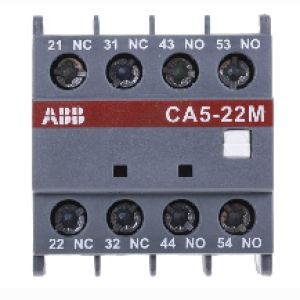

ABB CA5X-22M Specifications
| Contact layout | 2NO + 2NC instantaneous contacts |
|---|---|
| Thermal current Ith | 16A, rated insulation voltage Ui: 690V |
| AC-15 load | 6A@127V, 4A@230V, 3A@400V, 2A@690V |
| DC-13 load | 6A@24V, 0.55A@125V |
| Compatible | AX09~AX150 contactors |
| Dimension | 43(W) × 40(H) × 36(D) mm |
| Protection | IP20 (cabinet internal) |
| Operating temp | -25℃ ~ +70℃ |
About the ABB CA5X-22M
The ABB CA5X-22M is a electrical products used in industrial automation, control and power systems. It is rated at Contact layout 2NO + 2NC instantaneous contacts, Thermal current Ith 16A, rated insulation voltage Ui: 690V, AC-15 load 6A@127V, 4A@230V, 3A@400V, 2A@690V. This electrical products is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number ABB CA5X-22M for accurate procurement and cross-referencing.
Why source the ABB CA5X-22M from HDE123
- Verified part number: every ABB CA5X-22M is checked against its manufacturer specification before shipment.
- 8 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the ABB CA5X-22M
To order the ABB CA5X-22M, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
