Basic Information Model: CEV65M-02272; Type: Multi-turn Absolute Encoder (solid shaft); Brand: TR-Electronic; Replacement Model: 110-02272
Resolution Single-turn: 4096 steps (12 bits); Multi-turn: 4096 turns (12 bits); Total Resolution: 24 bits
Interface & Signal Interface: PROFIBUS DP; Output Level: RS485; Transmission Rate: Up to 12 Mbps; Encoding: Programmable
Electrical Specifications Supply Voltage: 11-27 VDC; No-load Current: ＜350 mA; Output Current: ≤100 mA; Logic Level: 1 Level ＞+8V, 0 Level ＜+2V
Mechanical Specifications Flange: ZB36; Shaft Diameter: 10FL/19.5 mm; Connector: 3×PG9 (radial); Protection Class: IP65; Operating Temperature: -20~+70℃
Performance & Installation Maximum Rotational Speed: 5000 rpm; Radial Load: 50 N; Axial Load: 30 N; Starting Torque: ≤0.02 Nm (IP65)
CEV65M-02272 Specifications
| Basic Information Model | CEV65M-02272; Type: Multi-turn Absolute Encoder (solid shaft); Brand: TR-Electronic; Replacement Model: 110-02272 |
|---|---|
| Resolution Single-turn | 4096 steps (12 bits); Multi-turn: 4096 turns (12 bits); Total Resolution: 24 bits |
| Interface & Signal Interface | PROFIBUS DP; Output Level: RS485; Transmission Rate: Up to 12 Mbps; Encoding: Programmable |
| Electrical Specifications Supply Voltage | 11-27 VDC; No-load Current: ＜350 mA; Output Current: ≤100 mA; Logic Level: 1 Level ＞+8V, 0 Level ＜+2V |
| Mechanical Specifications Flange | ZB36; Shaft Diameter: 10FL/19.5 mm; Connector: 3×PG9 (radial); Protection Class: IP65; Operating Temperature: -20~+70℃ |

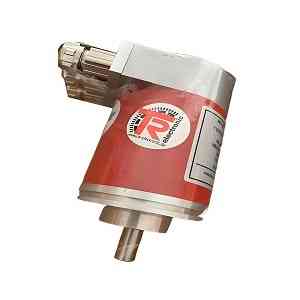

About the CEV65M-02272
The CEV65M-02272 is a oil drilling equipment used in industrial automation, control and power systems. It is rated at Basic Information Model CEV65M-02272; Type: Multi-turn Absolute Encoder (solid shaft); Brand: TR-Electronic; Replacement Model: 110-02272, Resolution Single-turn 4096 steps (12 bits); Multi-turn: 4096 turns (12 bits); Total Resolution: 24 bits, Interface & Signal Interface PROFIBUS DP; Output Level: RS485; Transmission Rate: Up to 12 Mbps; Encoding: Programmable. This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number CEV65M-02272 for accurate procurement and cross-referencing.
Why source the CEV65M-02272 from HDE123
- Verified part number: every CEV65M-02272 is checked against its manufacturer specification before shipment.
- 5 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the CEV65M-02272
To order the CEV65M-02272, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
