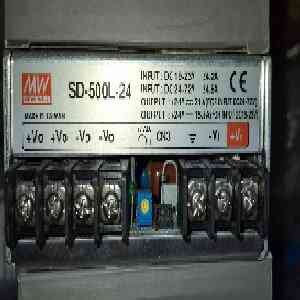

1. Basic information: Brand: MEAN WELL; Model: SD-500L-24; Type: Single output isolated DC/DC converter; Encapsulation: Closed type; Installation method: Chassis installation; Warranty: 3 years;
2. Input parameters: Input voltage range: 19-72 VDC (4:1 wide range); Input polarity protection: Yes (via fuse); Input surge current limit: active limit;
3. Output parameters: Output voltage: 24 VDC (adjustable 23-30 VDC); Rated output current: 21 A; Rated output power: 504 W; Output type: Single channel isolated output; I/O isolation voltage: 2000 VAC;
4. Electrical and Efficiency: Conversion Efficiency: Typical 88%; Output voltage accuracy: ± 1% (full load); Remote switch control: supported; Remote voltage compensation: supported; Switching frequency: 300 kHz (typical);
5. Protection features: equipped with short circuit, overload, overvoltage, and over temperature protection; Built in DC fan for forced air cooling (with speed control);
6. Environment and Machinery: Operating Temperature: -20 ℃ to+60 ℃; Storage temperature: -40 ℃ to+85 ℃; Dimensions (length x width x depth): 215 x 115 x 50 mm; Weight: approximately 1.1 kg;
7. Certification: Complies with safety standards such as IEC/EN 62368-1, TUV, EAC TP TC 004, etc
About the CONVERTER Part:SD-500L-24
The CONVERTER Part:SD-500L-24 is a oil drilling equipment used in industrial automation, control and power systems. It is rated at 7. Certification Complies with safety standards such as IEC/EN 62368-1, TUV, EAC TP TC 004, etc. This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number CONVERTER Part:SD-500L-24 for accurate procurement and cross-referencing.
Why source the CONVERTER Part:SD-500L-24 from HDE123
- Verified part number: every CONVERTER Part:SD-500L-24 is checked against its manufacturer specification before shipment.
- 1 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the CONVERTER Part:SD-500L-24
To order the CONVERTER Part:SD-500L-24, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
