– Valve size: 14 mm, nominal width 6 mm
– Pneumatic port: G1/8
– Operating voltage: 24 V DC, power consumption 0.65 W
– Working pressure: -0.9 ~ 10 bar
– Nominal flow rate: 800 l/min
– Protection class: IP65
– Switch time: ON 25 ms, OFF 35 ms
– Medium: Compressed air ISO 8573-1
– Ambient temp: -5 ~ 50 ℃
CPV14-M1H-5LS-1/8 Specifications
| Valve size | 14 mm, nominal width 6 mm |
|---|---|
| Pneumatic port | G1/8 |
| Operating voltage | 24 V DC, power consumption 0.65 W |
| Working pressure | -0.9 ~ 10 bar |
| Nominal flow rate | 800 l/min |
| Protection class | IP65 |
| Switch time | ON 25 ms, OFF 35 ms |
| Medium | Compressed air ISO 8573-1 |
| Ambient temp | -5 ~ 50 ℃ |

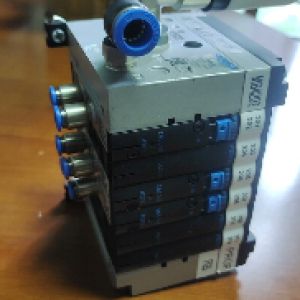

About the CPV14-M1H-5LS-1/8
The CPV14-M1H-5LS-1/8 is a hydraulic & pneumatic products used in industrial automation, control and power systems. It is rated at Valve size 14 mm, nominal width 6 mm, Pneumatic port G1/8, Operating voltage 24 V DC, power consumption 0.65 W. This hydraulic & pneumatic products is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number CPV14-M1H-5LS-1/8 for accurate procurement and cross-referencing.
Why source the CPV14-M1H-5LS-1/8 from HDE123
- Verified part number: every CPV14-M1H-5LS-1/8 is checked against its manufacturer specification before shipment.
- 9 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the CPV14-M1H-5LS-1/8
To order the CPV14-M1H-5LS-1/8, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
