Pressure and temperature
working pressure PN10, PN16
testing pressure shell: 1.5 times rated pressure
seat: 1.1 times rated pressure
working temperature
-10 °C to 80°C (NBR)
-10 °C to 120°C (EPDM)
suitable media water, oil and gas
Main material list
parts material
body cast iron, ductile iron,
seat EPDM, NBR,FPM, PTFE
disc nickel ductile iron,AI bronze, stainless steel
stem carbon steel, stainless steel
bushing PTFE
“O” ring PTFE
pin stainless steel
key stainless steel

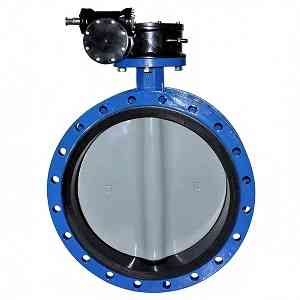

DN300 (12″), PN10 Model / Code: 16KLP00B4 Body Material: Ductile Iron GGG50 Disc Material: Stainless Steel 316 Seat (Liner): Elastomer per EN 681-1 (typically EPDM) Standard: EN 593 (Valve construction) Seat Marking: “215 EN 681-1” (rubber material compliance)
