Applicable pipe diameter range: Φ 33.3~178mm (1 5/16 “-7”) Clamp head speed (@ 33.5 GPM/127LPM): Low gear 27 r/min, High gear 126 r/min Torque (@ 2000 PSI/14 MPa): Low gear 8100 N.m (6000ft. lbs), High gear 1763 N.m (1300ft. lbs) Dimensions (length x width x height): Combination clamp: 1295.4 × 656.5 × 695mm (51 “× 25.8” × 27.4 “) Hydraulic hoist: 2032 × 203.2 × 203.2mm (80” × 8 “× 8”) Maximum stroke of hydraulic hoist: 1652.9mm (65 “) Transport weight: 590kg (1300 lbs) Environmental temperature: 0 ℃~+50 ℃

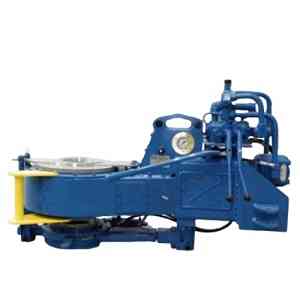

Drag ring Assembly for tubing tong XQB 178/8 TEDA
Hde Shopping Event
Sale_coupon_15
$13,074.29
99 in stock
99 in stock
-
Pick up from the HDE Store
Located in:Xi'an City China
-
Courier delivery
Our courier will deliver to the specified address
- Courier delivery
DHL / Fedex / UPS / By Air
Payment Methods:
