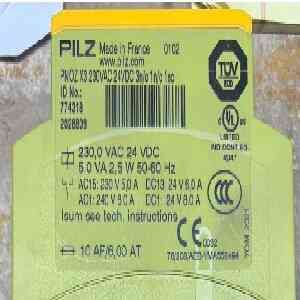

1. Basic information: Model: PNOZ X3 230VAC/24VDC; Material number: 774318; Brand: Pilz; Type: Dual channel safety relay;
2. Electrical parameters: Supply voltage: 230V AC (195.5-253V)/24V DC (20.4-26.4V); Input: 2-channel 24V DC safety input (S11-S12, S21-S22);
Output: 3 normally open safety contacts (3n/o), 1 normally closed auxiliary contact (1n/c), 1 semiconductor output (1so); Contact rated current: AC-15 230V 5A; DC-13 24V 4A
3. Safety and performance: Safety level: SIL 3, PL e, Cat.4; Dual channel monitoring, mandatory guidance of contact points; Reset method: Monitoring manual/automatic reset is optional;
Response time: ≤ 15ms;
4. Machinery and Environment: Installation: DIN rail (width 45mm); Terminal: Screw connection
Working temperature: -25 ℃ to+55 ℃; Protection level: IP20,
Size: 45 × 87 × 121mm; Weight: Approximately 380g
5. Application adaptation: adapt to emergency stop buttons, safety doors, limit switches, etc; Suitable for safety circuits in machine tools, packaging lines, and automated production lines
Dual channel safety relay PNOZ X3 230VAC 24VDC Specifications
| 1. Basic information | Model: PNOZ X3 230VAC/24VDC; Material number: 774318; Brand: Pilz; Type: Dual channel safety relay |
|---|---|
| 2. Electrical parameters | Supply voltage: 230V AC (195.5-253V)/24V DC (20.4-26.4V); Input: 2-channel 24V DC safety input (S11-S12, S21-S22) |
| Response time | ≤ 15ms |
| 4. Machinery and Environment | Installation: DIN rail (width 45mm); Terminal: Screw connection |
| Working temperature | -25 ℃ to+55 ℃; Protection level: IP20, |
| Size | 45 × 87 × 121mm; Weight: Approximately 380g |
About the Dual channel safety relay PNOZ X3 230VAC 24VDC
The Dual channel safety relay PNOZ X3 230VAC 24VDC is a oil drilling equipment used in industrial automation, control and power systems. It is rated at 1. Basic information Model: PNOZ X3 230VAC/24VDC; Material number: 774318; Brand: Pilz; Type: Dual channel safety relay, 2. Electrical parameters Supply voltage: 230V AC (195.5-253V)/24V DC (20.4-26.4V); Input: 2-channel 24V DC safety input (S11-S12, S21-S22), Response time ≤ 15ms. This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number Dual channel safety relay PNOZ X3 230VAC 24VDC for accurate procurement and cross-referencing.
Why source the Dual channel safety relay PNOZ X3 230VAC 24VDC from HDE123
- Verified part number: every Dual channel safety relay PNOZ X3 230VAC 24VDC is checked against its manufacturer specification before shipment.
- 6 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the Dual channel safety relay PNOZ X3 230VAC 24VDC
To order the Dual channel safety relay PNOZ X3 230VAC 24VDC, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
