Parameter Value
Model Number MS6-EM1FR-1/2-D6-E-P-VC-AG-BAR-WPE-B

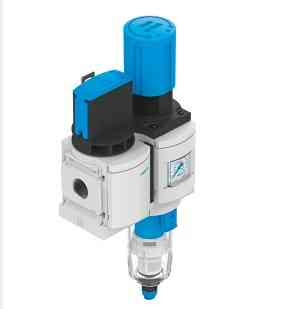

Product Type Festo MS6 Series Compressed Air Preparation Unit
Port Size G 1/2 (threaded connection)
Operating Pressure Range 0.5–10 bar (adjustable)
Max. Inlet Pressure 16 bar
Temperature Range -10 °C to +60 °C (operating); -20 °C to +80 °C (storage)
Filtration Grade 40 μm (standard filter element, replaceable)
Bowl Material Polycarbonate (PC) with metal guard
Drain Type Manual drain (via knob)
Pressure Gauge Analog pressure gauge (D6, dial diameter 63 mm)
Mounting Type Rail mounting (compatible with Festo standard rails)
Protection Class IP54
Fluid Medium Compressed air (oil-free or lubricated, max. oil content 5 mg/m³)
Certifications CE, UL, ISO 8573-1 compliant
Component Composition Filter + pressure regulator + pressure gauge + shut-off valve + pressure relief function
Gas source treatment device MS6-EM1FR-1/2-D6-E-P-VC-AG-BAR-WPE-B 8098367，MS6-EM1FR-1/2-D6-E-P-VC-AG-BAR-WPE-B 8098367 Festo
