Rated capacity: 20 tons; Maximum capacity (at 10000 psi): 23.6 tons; Maximum working pressure: 8466 psi (standard)/10000 psi (maximum); Travel: 2 inches (50.8mm); Retraction height: 6-1/8 inches (156mm); Stretching height: 8-1/8 inches (206.4mm); Effective area: 4.720 in ²; Oil volume: 9.45 cubic inches; Piston rod diameter: 2-1/8 inches (54mm); Cylinder diameter: 2.4520 inches (62.3mm); Outer diameter: 3-7/8 inches (98.4mm); Base to port distance: 1.000 inches; Port: 3/8 “NPT internal thread half coupling; Material: Anti corrosion vertical pipe (with Power Tech treatment); Weight: Approximately 7.7kg; Installation method: Interchangeable piston head insert, single acting model with threaded collar

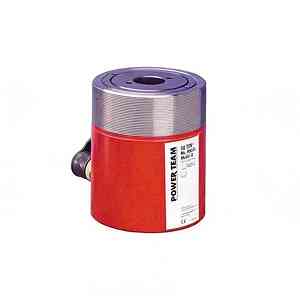

Hydraulic cylinde RH202 POWER TEAM
Hde Shopping Event
Sale_coupon_15
$796.34
99 in stock
99 in stock
-
Pick up from the HDE Store
Located in:Xi'an City China
-
Courier delivery
Our courier will deliver to the specified address
- Courier delivery
DHL / Fedex / UPS / By Air
Payment Methods:
