Delivery time: 3-4 weeks
Operating voltage: 10…36 V DC
Current consumption: 50 mA (at 24 V)
Protection class: Class II
Reverse polarity protection: Yes
Light type: Red light, Green light, Blue light
Wavelength: 625 nm (Red), 525 nm (Green), 465 nm (Blue)
2. Output
Electrical design: PNP/NPN (automatic load detection for PNP/NPN)
Output function: Light-on and dark-on mode (selectable)
Max voltage drop of DC switching output: 2.5 V
Continuous current load of DC switching output: 200 mA
Switching frequency (DC): 10000 Hz
Short-circuit protection: Yes, pulse type
Overload protection: Yes
3. Sensing Range
Sensing distance: 18…22 mm
Max spot width: 1.5 mm
Max spot height: 5 mm
4. Response Time
< 0.05 ms
5. Operating Conditions
Ambient temperature: -25…60 ℃
Enclosure protection rating: IP67
IFM：O5K500 O5K-FAKG/US100 Specifications
| Delivery time | 3-4 weeks |
|---|---|
| Operating voltage | 10…36 V DC |
| Current consumption | 50 mA (at 24 V) |
| Protection class | Class II |
| Reverse polarity protection | Yes |
| Light type | Red light, Green light, Blue light |
| Wavelength | 625 nm (Red), 525 nm (Green), 465 nm (Blue) |
| Electrical design | PNP/NPN (automatic load detection for PNP/NPN) |
| Output function | Light-on and dark-on mode (selectable) |
| Max voltage drop of DC switching output | 2.5 V |
| Switching frequency (DC) | 10000 Hz |
| Short-circuit protection | Yes, pulse type |
| Overload protection | Yes |
| Sensing distance | 18…22 mm |
| Max spot width | 1.5 mm |
| Max spot height | 5 mm |
| Ambient temperature | -25…60 ℃ |
| Enclosure protection rating | IP67 |

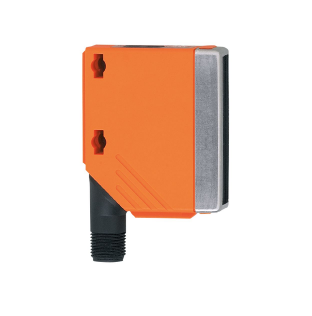

About the IFM：O5K500 O5K-FAKG/US100
The IFM：O5K500 O5K-FAKG/US100 is a oil drilling equipment used in industrial automation, control and power systems. It is rated at Delivery time 3-4 weeks, Operating voltage 10…36 V DC, Current consumption 50 mA (at 24 V). This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number IFM：O5K500 O5K-FAKG/US100 for accurate procurement and cross-referencing.
Why source the IFM：O5K500 O5K-FAKG/US100 from HDE123
- Verified part number: every IFM：O5K500 O5K-FAKG/US100 is checked against its manufacturer specification before shipment.
- 18 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the IFM：O5K500 O5K-FAKG/US100
To order the IFM：O5K500 O5K-FAKG/US100, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
