Parameter Value
Model Number DT50-P1123 (1047118)
Product Type Time-of-Flight (ToF) mid-range laser distance sensor (Dx50 series)
Measuring Range 200 mm–10,000 mm (90% remission); 200 mm–5,000 mm (18% remission); 200 mm–2,500 mm (6% remission)SICK
Resolution 1 mmSICK
Repeatability ≥2.5 mmSICK
Accuracy ±10 mmSICK
Response Time 20 ms/30 msSICK
Output Time ≥4 msSICK
Light Source Visible red laser (658 nm, 120 mW max output, 2.5 ns pulse duration, 1/400 duty cycle)SICK
Laser Class Class 1 (IEC 60825-1:2014, EN 60825-1:2014)SICK
Typical Light Spot Size (10 m) 15 mm × 15 mmSICK
Supply Voltage DC 10 V–30 V (ripple ≤5 Vpp)
Power Consumption ≤2.1 W
Initialization Time ≤250 ms
Warm-up Time ≤15 min
Ambient Temperature (Operating) -30°C to +65°CSICK
Ambient Temperature (Storage) -40°C to +75°CSICK
Max. Relative Humidity (Non-condensing) ≤95%SICK
Degree of Protection IP65 (IEC 60529)
Housing Material Die-cast zinc (ZNAL4CU1), acrylic glass (PMMA)
Connection Type Male connector, M12, 5-pin
Product Weight 150 g
Compliance RoHS

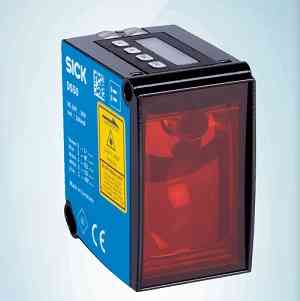

About the Laser distance sensor DT50-P1123， DT50-P1123 SICK
The Laser distance sensor DT50-P1123， DT50-P1123 SICK is a oil drilling equipment used in industrial automation, control and power systems. It is rated at Laser Class Class 1 (IEC 60825-1 2014, EN 60825-1:2014)SICK. This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number Laser distance sensor DT50-P1123， DT50-P1123 SICK for accurate procurement and cross-referencing.
Why source the Laser distance sensor DT50-P1123， DT50-P1123 SICK from HDE123
- Verified part number: every Laser distance sensor DT50-P1123， DT50-P1123 SICK is checked against its manufacturer specification before shipment.
- 1 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the Laser distance sensor DT50-P1123， DT50-P1123 SICK
To order the Laser distance sensor DT50-P1123， DT50-P1123 SICK, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
