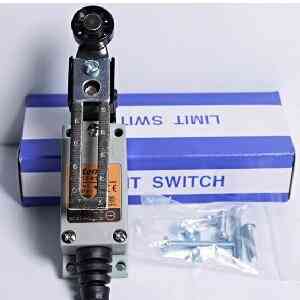

1. Basic information: Type: Dual circuit roller lever limit switch; Adaptation scenario: GATEMATIC door control system; Shell material: Zinc alloy base+reinforced plastic shell;
2. Electrical parameters: Rated voltage: 250V AC; Rated current: 5A (resistive load), 1-3A (inductive load); Contact configuration: 1 set of normally open (NO)+1 set of normally closed (NC); Mechanical lifespan: ≥ 10000000 cycles; Electrical lifespan: ≥ 500000 cycles;
3. Mechanical parameters: actuator: adjustable roller lever (rotation angle ± 90 °); Action force (OF): maximum 750g; Recovery force (RF): minimum 100g; Pre stroke (PT): maximum 20 °; Motion angle (MD): maximum 12 °; Overtravel (OT): minimum 50 °;
4. Environment and installation: Protection level: IP65; Working temperature: -5 ℃ to+65 ℃; Installation method: fixed with bolts (installation hole 4.5mm); Connection method: screw terminal/cable interface;
5. Application: Gate control system travel limit, position detection, compatible with GATEMATIC automatic doors/industrial doors.
About the LIMIT SWITCH TZ 8108, 51
The LIMIT SWITCH TZ 8108, 51 is a oil drilling equipment used in industrial automation, control and power systems. It is rated at 5. Application Gate control system travel limit, position detection, compatible with GATEMATIC automatic doors/industrial doors.. This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number LIMIT SWITCH TZ 8108, 51 for accurate procurement and cross-referencing.
Why source the LIMIT SWITCH TZ 8108, 51 from HDE123
- Verified part number: every LIMIT SWITCH TZ 8108, 51 is checked against its manufacturer specification before shipment.
- 1 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the LIMIT SWITCH TZ 8108, 51
To order the LIMIT SWITCH TZ 8108, 51, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
