Description

Download Datasheet

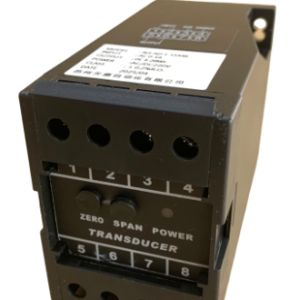

N3-AD-1-55A4F Single-phase AC Current Isolation Transducer
Brand: TCONSOR 天康（兼容台湾 TAIK 台技 S3 系列电气规格）
Model: N3-AD-1-55A4F
Product Name: Single-phase AC current transducer (average value sampling)
Specifications
Model coding explanation：
N3-AD-1：Single channel AC current (average value measurement)
5：Input AC 0～5A；5：50Hz；A：AC auxiliary power；4：Output DC 4～20mA；F：DC220V auxiliary power
Input signal：AC 0～5A, 50Hz
Output signal：DC 4～20mA
Auxiliary power supply：DC 220V
Accuracy class：0.5 grade
Isolation：Three-way isolation (input / power / output)
Max output load：≤500Ω
Calibration：Zero (ZERO) / Span (SPAN) adjustable potentiometer on front panel
Mounting：35mm DIN rail installation
Operating temperature：-10℃ ~ +50℃
