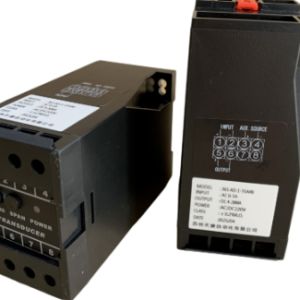

N3-VD-3-15A40 Three-phase AC Voltage Transducer
Brand: TCONSOR（Compatible with TAIK S3 series specifications）
Model: N3-VD-3-15A40
Product Name: Three-phase AC voltage isolation transmitter
Specifications
Model coding definition
N3-VD-3：3-phase AC voltage transducer
1：Input AC 0~100V；5：50Hz；A：AC auxiliary power；40：Output DC 0~20mA
Input signal：Three-phase AC 0～100V, 50Hz
Output signal：DC 0～20mA
Auxiliary power：AC 220V
Accuracy class：0.5 grade
Isolation：Three-way isolation of input / power / output
Maximum output load：≤500Ω
Zero and span adjustable potentiometer on panel
Mounting：35mm DIN rail installation
Operating temperature：-10℃ ~ +50℃
N3-VD-3-15A40 Specifications
| Brand | TCONSOR（Compatible with TAIK S3 series specifications） |
|---|---|
| Model | N3-VD-3-15A40 |
| Product Name | Three-phase AC voltage isolation transmitter |
| N3-VD-3 | 3-phase AC voltage transducer |
| Input signal | Three-phase AC 0～100V, 50Hz |
| Output signal | DC 0～20mA |
| Auxiliary power | AC 220V |
| Accuracy class | 0.5 grade |
| Isolation | Three-way isolation of input / power / output |
| Maximum output load | ≤500Ω |
| Mounting | 35mm DIN rail installation |
| Operating temperature | -10℃ ~ +50℃ |
About the N3-VD-3-15A40
The TCONSOR（Compatible with TAIK S3 series specifications） N3-VD-3-15A40 is a electrical products used in industrial automation, control and power systems. It is rated at Brand TCONSOR（Compatible with TAIK S3 series specifications）, Model N3-VD-3-15A40, Product Name Three-phase AC voltage isolation transmitter. Manufactured by TCONSOR（Compatible with TAIK S3 series specifications）, this electrical products is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number N3-VD-3-15A40 for accurate procurement and cross-referencing.
Why source the N3-VD-3-15A40 from HDE123
- Verified part number: every N3-VD-3-15A40 is checked against its manufacturer specification before shipment.
- 12 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the N3-VD-3-15A40
To order the TCONSOR（Compatible with TAIK S3 series specifications） N3-VD-3-15A40, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
