Basic Information
Brand: Notifier (Honeywell Fire Safety)

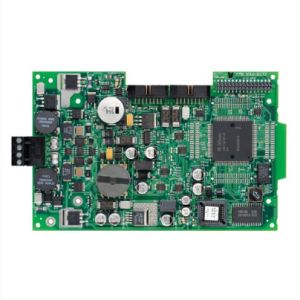

Model: JKM-FCM-1C
Type: Single Addressable Intelligent Control Output Module
Compatible Host: NFS2-3030 series ONYX fire alarm control panel
Core Function: Active switching for 24VDC fire equipment, 70.7V RMS audio speaker circuit; monitors open/short fault of output wiring and uploads status to FACP
Electrical Parameters
Bus Operating Voltage: 15 ~ 32 VDC (SLC two-wire loop powered)
Standby Current: 475μA (green LED flashing during polling)
Max Operating Current: 5.1mA @24VDC (LED steady on when activated)
External Load Power
DC Output: Max 24VDC; Max 3A for Class B wiring, Max 2A for Class A wiring
Audio Output: 70.7V RMS, 50W max speaker circuit
Address Setting: Two-digit decimal rotary dial, address range 0~159, occupies 1 single SLC address
Line Supervision: Built-in circuit monitors open & short-circuit faults of field output cables
Notifier by Honeywell; Model No: JKM-FCM-1C Specifications
| Brand | Notifier (Honeywell Fire Safety) |
|---|---|
| Model | JKM-FCM-1C |
| Type | Single Addressable Intelligent Control Output Module |
| Compatible Host | NFS2-3030 series ONYX fire alarm control panel |
| Bus Operating Voltage | 15 ~ 32 VDC (SLC two-wire loop powered) |
| Standby Current | 475μA (green LED flashing during polling) |
| Max Operating Current | 5.1mA @24VDC (LED steady on when activated) |
| DC Output | Max 24VDC; Max 3A for Class B wiring, Max 2A for Class A wiring |
| Audio Output | 70.7V RMS, 50W max speaker circuit |
| Address Setting | Two-digit decimal rotary dial, address range 0~159, occupies 1 single SLC address |
| Line Supervision | Built-in circuit monitors open & short-circuit faults of field output cables |
About the Notifier by Honeywell; Model No: JKM-FCM-1C
The Notifier (Honeywell Fire Safety) Notifier by Honeywell; Model No: JKM-FCM-1C is a electrical products used in industrial automation, control and power systems. It is rated at Brand Notifier (Honeywell Fire Safety), Model JKM-FCM-1C, Type Single Addressable Intelligent Control Output Module. Manufactured by Notifier (Honeywell Fire Safety), this electrical products is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number Notifier by Honeywell; Model No: JKM-FCM-1C for accurate procurement and cross-referencing.
Why source the Notifier by Honeywell; Model No: JKM-FCM-1C from HDE123
- Verified part number: every Notifier by Honeywell; Model No: JKM-FCM-1C is checked against its manufacturer specification before shipment.
- 11 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the Notifier by Honeywell; Model No: JKM-FCM-1C
To order the Notifier (Honeywell Fire Safety) Notifier by Honeywell; Model No: JKM-FCM-1C, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
