Basic information Model: E3S-CL2 2M Brand: OMRON Type: Background suppression photoelectric sensor (built-in amplifier) Light source: Infrared LED (860nm) Detection distance: 5-500mm Setting method: 6-turn potentiometer Manual adjustment Output type: PNP/NPN Optional action mode: Light ON/Dark ON Optional connection method: 2m Cable shell material: Zinc die-casting lens material: Acrylic resin External dimensions: 15.4mm × 43.7mm × 34.5mm Weight: Approximately 110g Protection level: IP67 (oil resistant) Electrical parameters Power supply voltage: DC10-30V (ripple p-p ≤ 10%) Consumption current: Maximum 50mA Output: 1 channel NPN/PNP collector open circuit, maximum 30V/200mA response time: action/reset ≤ 2ms insulation resistance: ≥ 20M Ω (500VDC) withstand voltage: 1000VAC 50/60Hz 1min anti-interference: anti-interference EMC， Compliant with industrial standards, environmental and physical parameters, working temperature: -25-55 ℃, storage temperature: -40-70 ℃ (no ice/condensation), working humidity: 35% -85% RH, storage humidity: 35% -95% RH (no condensation), anti vibration: 10-55Hz, 1.5mm double amplitude, X/Y/Z each 2h, anti impact: 500m/s ², X/Y/Z each 3 times. Environmental lighting: incandescent lamp ≤ 5000lx, sunlight ≤ 10000lx. Performance and safety detection characteristics: not affected by background and workpiece color. Protection function: output short circuit protection. Application scenarios: material positioning, presence detection, packaging/conveyor line in place detection

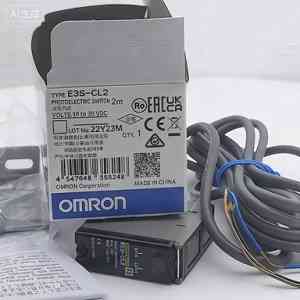

About the Omron original genuine photoelectric sensor E3S-CL2 2M
The Omron original genuine photoelectric sensor E3S-CL2 2M is a oil drilling equipment used in industrial automation, control and power systems. This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number Omron original genuine photoelectric sensor E3S-CL2 2M for accurate procurement and cross-referencing.
Why source the Omron original genuine photoelectric sensor E3S-CL2 2M from HDE123
- Verified part number: every Omron original genuine photoelectric sensor E3S-CL2 2M is checked against its manufacturer specification before shipment.
- 0 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the Omron original genuine photoelectric sensor E3S-CL2 2M
To order the Omron original genuine photoelectric sensor E3S-CL2 2M, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
