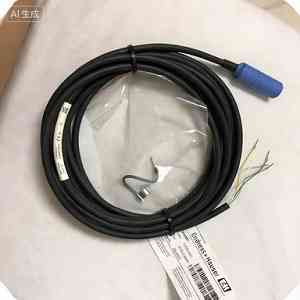

PH electrode cable CYK10-A101

Basic information model: CYK10-A101
Brand: Endress+Hauser (E+H)
Type: Memosens Digital Measurement Cable
Application: Compatible with Memosens sensors for measuring pH/ORP, conductivity, dissolved oxygen, etc
Signal transmission: non-contact inductive coupling digital transmission
Process connection: TOP68 connector (compatible with sensors such as ESA/ESB/ESS/HDA)
Electrical Connection: Terminal Blocks
Cable length: 10m
Protection level: IP68
Material: Copper core, PE insulation, PEEK shell
Size: Diameter 6.3mm
Weight: Approximately 0.2kg
Explosion proof certification: Non hazardous area (Approval A)
Electrical parameter transmission method: Inductively coupled digital signal
Isolation characteristics: The transmitter is electrically isolated from the medium
Anti interference: resistant to EMC magnetic fields, moisture, and corrosion
Signal function: Automatic fault alarm in case of signal loss
Cable length compatibility: up to 100m in length, without any length restrictions
Environmental and physical parameters Operating temperature: -20-135 ℃
Storage temperature: 40-150 ℃
Working pressure: maximum 50 bar (at 135 ℃)
Installation method: Flexible wiring, suitable for various industrial scenarios
Anti vibration: Compliant with industrial standards, suitable for working conditions and vibration environments
Performance and safety without contact corrosion risk, waterproof connection
Easy to install, no need for special tools
Long term stability is high, reducing maintenance costs
