6weeks
Parameter Value

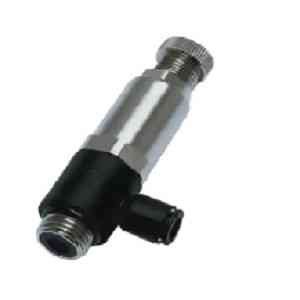

Product Name Parker Legris Pressure Regulator 73000613
Series 7300 Series
Media Compressed air (silicone-free)
Connections Inlet: 1/4″ Male BSPP (G1/4)
Outlet: 6 mm tube OD (push‑to‑connect)
Working Pressure Upstream: 1–16 bar
Downstream: 1–8 bar
Working Temperature
-10°C to +70°C
Materials Body: Glass‑fiber‑reinforced nylon 6.6
Screw: Nickel‑plated brass
Seal: Nitrile (Buna‑N)
Dimensions Hex size: 17 mm (ext.), 13 mm (ext.)
Length: 82 mm
Weight: 0.065 kg
Certifications RoHS, PED, REACH
Features Lockable setpoint adjustment
Marked adjustment screw
Banjo orientation
Manifold mountable
Applications Robotics, textile, semiconductors, packaging,
pneumatics (cylinder force control)
Pressure Regulator 73000613 Parker Specifications
| Connections Inlet | 1/4" Male BSPP (G1/4) |
|---|---|
| Outlet | 6 mm tube OD (push‑to‑connect) |
| Working Pressure Upstream | 1–16 bar |
| Downstream | 1–8 bar |
| Materials Body | Glass‑fiber‑reinforced nylon 6.6 |
| Screw | Nickel‑plated brass |
| Seal | Nitrile (Buna‑N) |
| Dimensions Hex size | 17 mm (ext.), 13 mm (ext.) |
| Length | 82 mm |
| Weight | 0.065 kg |
About the Pressure Regulator 73000613 Parker
The Pressure Regulator 73000613 Parker is a oil drilling equipment used in industrial automation, control and power systems. It is rated at Connections Inlet 1/4" Male BSPP (G1/4), Outlet 6 mm tube OD (push‑to‑connect), Working Pressure Upstream 1–16 bar. This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number Pressure Regulator 73000613 Parker for accurate procurement and cross-referencing.
Why source the Pressure Regulator 73000613 Parker from HDE123
- Verified part number: every Pressure Regulator 73000613 Parker is checked against its manufacturer specification before shipment.
- 10 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the Pressure Regulator 73000613 Parker
To order the Pressure Regulator 73000613 Parker, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
