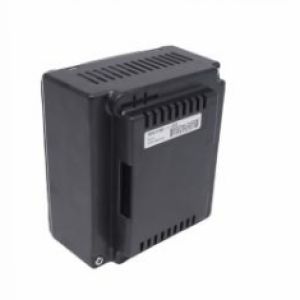

Bosch Rexroth R901254583 (VT-MUXA2-2-1X/V0/1A) Solenoid Current Monitoring Module

– Type: Solenoid Current Monitoring & Limiting Module for Proportional Valves
– Model: VT-MUXA2-2-1X/V0/1A, Part No.: R901254583
– Supply Voltage: 24 VDC
– Solenoid Output Current: 1.0 A (monitored ±2%)
– Command Value Output: 0…+10 V / 0…±10 V, max 2 mA
– OK Status Output: UB–3 V / 50 mA, short-circuit protected
– Terminals: 16-pole detachable terminal block
– Wire cross-section: 0.2 ~ 2.5 mm²
– Mounting: DIN rail TH 35-7.5 (EN 60715)
– Protection Class: IP20
– Operating Temperature: 0°C ~ +50°C
– Storage Temperature: -25°C ~ +85°C
– Max service life: 40000 operating hours
– Certification: CE, RoHS
– Feature: Dual solenoid monitoring, fault reset, used with VT-MSPA2 proportional amplifiers
