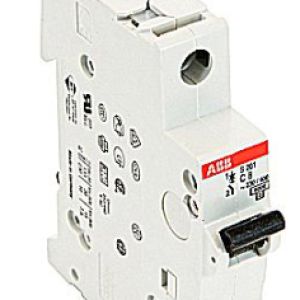

S201-C2 Miniature Circuit Breaker
Brand: ABB
Order No.: S201-C2（物料号：2CDS251001R0024）
Product Name: S200 series 1P C-curve MCB
Specifications
Poles: 1 Pole
Rated current (In): 2 A
Trip curve: Type C（5~10In instantaneous trip）
Rated AC voltage: 230/400 V AC
Rated DC voltage: 72 V DC
Rated breaking capacity Icn: 6 kA @230 V AC
Trip mode: Thermal-magnetic current limiting
Terminal: Screw cage terminal
Wire range: Rigid wire 1～16 mm²; Flexible wire 1～10 mm²
Dimension: W17.5 × H88 × D69 mm
Net weight: 0.122 kg
Mounting: NS35 standard DIN rail
Protection class: IP20
Ambient temperature: -25 ℃ ~ +55 ℃
Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL1077
Application: Precision instrument, sensor, low-power control circuit overload & short-circuit protection inside control cabinet.
S201-C2-2CD S251 001 R0024(230/400) Specifications
| Brand | ABB |
|---|---|
| Order No | S201-C2（物料号：2CDS251001R0024） |
| Product Name | S200 series 1P C-curve MCB |
| Poles | 1 Pole |
| Rated current (In) | 2 A |
| Trip curve | Type C（5~10In instantaneous trip） |
| Rated AC voltage | 230/400 V AC |
| Rated DC voltage | 72 V DC |
| Rated breaking capacity Icn | 6 kA @230 V AC |
| Trip mode | Thermal-magnetic current limiting |
| Terminal | Screw cage terminal |
| Wire range | Rigid wire 1～16 mm²; Flexible wire 1～10 mm² |
| Dimension | W17.5 × H88 × D69 mm |
| Net weight | 0.122 kg |
| Mounting | NS35 standard DIN rail |
| Protection class | IP20 |
| Ambient temperature | -25 ℃ ~ +55 ℃ |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL1077 |
| Application | Precision instrument, sensor, low-power control circuit overload & short-circuit protection inside control cabinet. |
About the S201-C2-2CD S251 001 R0024(230/400)
The ABB S201-C2-2CD S251 001 R0024(230/400) is a electrical products used in industrial automation, control and power systems. It is rated at Brand ABB, Order No S201-C2（物料号：2CDS251001R0024）, Product Name S200 series 1P C-curve MCB. Manufactured by ABB, this electrical products is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number S201-C2-2CD S251 001 R0024(230/400) for accurate procurement and cross-referencing.
Why source the S201-C2-2CD S251 001 R0024(230/400) from HDE123
- Verified part number: every S201-C2-2CD S251 001 R0024(230/400) is checked against its manufacturer specification before shipment.
- 19 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the S201-C2-2CD S251 001 R0024(230/400)
To order the ABB S201-C2-2CD S251 001 R0024(230/400), add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
