Parameter Value
Model Number SME-8-K-LED-24 (SME8KLED24)
Order Code 150855
Brand FESTO
Series SME-8
Type Magnetic Proximity Sensor (Reed Switch)
Measuring Principle
Reed Switch
Switching Function Normally Open (N/O) Contact, Bipolar
Operating Voltage AC/DC 12–30 V (Nominal 24 V)
Max. Output Current 500 mA
Max. Switching Capacity AC 10 VA, DC 10 W
Switch-On Time ≤0.5 ms
Switch-Off Time 0.03 ms
Max. Switching Frequency
800 Hz
Repeatability ±0.1 mm
Protection Class IP65, IP67
Ambient Temperature -40°C to +60°C (Fixed Cable); -5°C to
+60°C (Flexible Cable)
Electrical Connection 3-Core Open-End Cable, 2.5 m Length, TPE-
U (PUR) Sheath
Mounting Type Clamped in T-Slot, Lengthwise Insertable
Tightening Torque 0.2 Nm
Indicator Yellow LED (Switching Status)
Housing Material PC, PET, High-Alloy Stainless Steel
Cable Sheath Color Grey
Product Weight 30 g
Certifications CE, ROHS, EMC Compliant

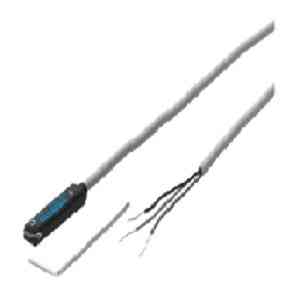

About the SENSOR SME-8-K-LED-24 SME8KLED24 FESTO
The SENSOR SME-8-K-LED-24 SME8KLED24 FESTO is a oil drilling equipment used in industrial automation, control and power systems. This oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number SENSOR SME-8-K-LED-24 SME8KLED24 FESTO for accurate procurement and cross-referencing.
Why source the SENSOR SME-8-K-LED-24 SME8KLED24 FESTO from HDE123
- Verified part number: every SENSOR SME-8-K-LED-24 SME8KLED24 FESTO is checked against its manufacturer specification before shipment.
- 0 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the SENSOR SME-8-K-LED-24 SME8KLED24 FESTO
To order the SENSOR SME-8-K-LED-24 SME8KLED24 FESTO, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
