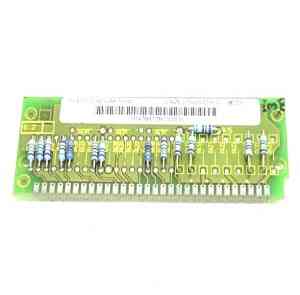

Siemens 6SE70 inverter ABO detection board resistor board 6SE7032-3HH84-1BH0，6SE7032-3HH84-1BH0 Siemens

Parameter Category Parameter Value
Basic Information Ordering Number 6SE7032-3HH84-1BH0
Product Name SIMOVERT MASTERDRIVES Standard Normalizing Module (ABO)
Product Series SIMOVERT MASTERDRIVES
Manufacturer Siemens
Product Status Legacy spare part (discontinued, available while stock lasts)
Protection Class IP20 (cabinet-mounted)
Net Weight ~3.2 kg
Certifications CE, UL, cUL, IEC 61800-5-1
Electrical Specifications Rated Working Voltage 3-phase AC 660–690 V; DC 890–930 V
Rated Input Current 225 A
Max Input Current 247.5 A (1-minute overload)
Signal Input Range DC 0–10 V / 4–20 mA (configurable)
Signal Output Range DC 0–10 V / 4–20 mA (galvanically isolated)
Insulation Voltage 3 kV AC (1 min)
Power Consumption ≤ 20 W
Functional Features Core Function Current/voltage signal normalization, isolation, and scaling for vector control inverters
Signal Isolation Galvanic isolation between input, output, and power supply
Calibration Factory-calibrated; field-adjustable via DIP switches
Compatibility SIMOVERT MASTERDRIVES VC inverters (6SE70 high-power 660–690 V models)
Protection Functions Overcurrent, overvoltage, undervoltage, reverse polarity protection
Mechanical & Environmental Conditions Mounting Method DIN rail-mounted (35 mm standard rail)
Dimensions (L×W×H) 145 mm × 105 mm × 65 mm
Operating Temperature 0°C to +45°C (derate 1% per °C above 45°C up to 55°C)
Storage Temperature -25°C to +70°C
Operating Humidity 5%–95% RH (non-condensing)
Vibration Resistance 5–500 Hz, 0.3 g acceleration
