Model: 6AV6545-0CC10-0AX0

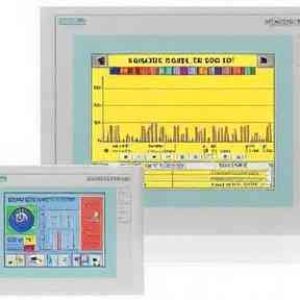

Product Type: SIMATIC TP270 10″ Touch Panel (Industrial HMI)
Display: 10.4″ STN Color LCD, Resolution 640 × 480 (VGA), 256 colors
Operation Mode: Touch screen operation
Configuration Memory: 2 MB flash memory for project storage
Power Supply: DC 24V, typical power consumption 15W
Communication Interfaces: MPI / PROFIBUS-DP, RS232, RS422/RS485, 1 × USB port
Memory Slot: CF card slot for data backup & program transfer
Programming Software: ProTool V6.0 or higher version
Protection Grade: Front panel IP65; Rear housing IP20
Mounting: Cabinet embedded panel mounting
Overall dimension: 335 mm (W) × 275 mm (H)
Cut-out dimension: 310 mm × 248 mm
Operating ambient temperature: 0 ℃ ~ +50 ℃ (cabinet installation)
Storage temperature: -20 ℃ ~ +60 ℃
Humidity: 5% ~ 95% RH, non-condensing
Hardware real-time clock with backup battery
Certifications: CE, UL, RoHS compliant
Application: Industrial automation on-site monitoring & operation, data exchange with Siemens PLC
SIMATIC TP270 10″ Touch Panel HMI，6AV6545-0CC10 -0AX0
