Yokogawa PH8EFP-03-TN-TT1-N-EA Sensor

Yokogawa PH8EFP-03-TN-TT1-N-EA Sensor

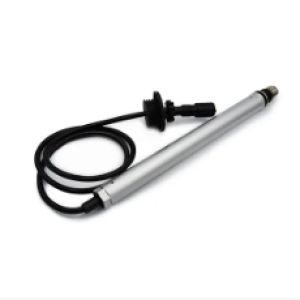

– Yokogawa PH8EFP-03-TN-TT1-N-EA KCl Refillable pH Sensor
– Model: PH8EFP-03-TN-TT1-N-EA
– Type: KCl filling refillable process pH sensor
– Measured substance: Hydrogen ion concentration (pH) in aqueous solution
– Measurement principle: Glass electrode method
– pH measuring range: 0 ~ 14 pH
– Temperature range: -5 ~ 105 °C
– Pressure rating: Atmospheric to 10 kPa without holder, atmospheric to 500 kPa with medium pressure holder
– Temperature compensation: Built-in Pt1000
– Cable length: 3 m
– Liquid junction: TT1 PTFE Teflon, anti-clogging for turbid and dirty process
– Ground electrode: TN Titanium ground
– Wetted materials: Ryton PPS, pH glass, Titanium, PTFE, FKM / FFKM O-ring
– Weight: Sensor only approx. 0.4 kg
– KCl reservoir tank: 500mL, sold separately, approx. 0.3 kg
– Digital function: SENCOM 4.0 compatible with SA11 adapter
– Compatible transmitters: FLXA402, FLXA202, FLXA21, PH450G
– Feature: Replaceable glass electrode and liquid junction, regular KCl refilling required
