– Contacts: 1NO + 1NC, snap action, positive opening safety contact
– Contact material: Silver plated
– Rated insulation voltage Ui: 500V AC
– AC-15 rating: 3A @240V AC
– Cable entry: 3 tapped holes for Pg11 cable gland
– Terminal: Screw-clamp terminals, wire range 0.34~1.5mm²
– Housing: Metal alloy body
– Protection class: IP66, IK05
ZCKM1 Specifications
| Contacts | 1NO + 1NC, snap action, positive opening safety contact |
|---|---|
| Contact material | Silver plated |
| Rated insulation voltage Ui | 500V AC |
| AC-15 rating | 3A @240V AC |
| Cable entry | 3 tapped holes for Pg11 cable gland |
| Terminal | Screw-clamp terminals, wire range 0.34~1.5mm² |
| Housing | Metal alloy body |
| Protection class | IP66, IK05 |

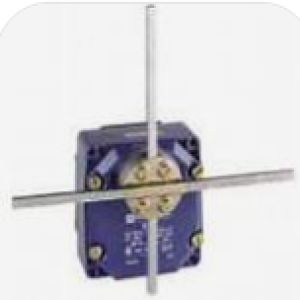

About the ZCKM1
The ZCKM1 is a electrical products used in industrial automation, control and power systems. It is rated at Contacts 1NO + 1NC, snap action, positive opening safety contact, Contact material Silver plated, Rated insulation voltage Ui 500V AC. This electrical products is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number ZCKM1 for accurate procurement and cross-referencing.
Why source the ZCKM1 from HDE123
- Verified part number: every ZCKM1 is checked against its manufacturer specification before shipment.
- 8 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the ZCKM1
To order the ZCKM1, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
