Barksdale 841-34-0 Skids, narrow profile

Part No.: 841-34-0
Description: Skids, narrow profile
Brand: Barksdale, mounting base slide rail compatible with Series 9000 Shear-Seal manual hydraulic directional valves, valve cover 694-82-0 & joystick 900-23 series
Product Size Definition
Narrow profile version: Optimized for compact control cabinets & dense multi-valve manifolds; wide-profile skid as alternative model

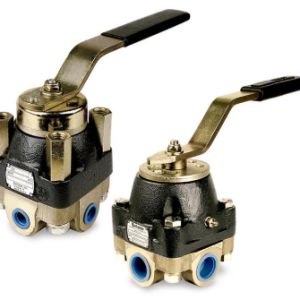

Full compatible assembly: Series 9000 2/3-position manual valves, 694-82-0 valve cover, 900-23-2 / 900-23-3 control joysticks
Mechanical & Material Specs
Body: Integrated stamped cold rolled steel, zinc electroplated for oil & moisture corrosion resistance
Narrow width dimension: 34 mm (wide type = 48 mm), saves cabinet horizontal space
Integrated slide locating channel to lock valve body against vibration shift
Standard mounting holes for wall mounting or DIN rail bracket installation
Built-in stop tabs to restrict valve longitudinal movement, neat arrangement for multiple valves
Net weight: 0.24 kg
Hydraulic Compatibility Ratings
Matching valve max working pressure: 350 psi (24 bar) pilot control circuit
Fluid temperature range: -20℃ ~ +80℃
Ambient operating temperature: -30℃ ~ +70℃
IP rating: IP54, dust & oil splash resistant
Compatible media: Anti-wear hydraulic oil, dry compressed air; not suitable for water glycol fire-resistant fluids
Key Advantages
Slim narrow construction, ideal for dense multi-spool valve stacking to reduce installation footprint
Snap-in slide positioning, valve replacement without full skid disassembly for easy maintenance
Vibration-resistant galvanized steel prevents loosening during continuous equipment cycling
Universal hole layout for single valve standalone mounting or spliced multi-skid manifold assembly
Perfect dimensional match with matching valve covers & joysticks without assembly gaps
