Basic information model: 88829198
Series: EMER8
Type: Multi functional analog delay relay (mechanical relay)
Core application: Industrial timing control, supporting 10 functions including A/At/B/C/D/Di/H/HT/Pe/W
Installation method: DIN rail (17.5mm narrow body)
Electrical parameters Power supply voltage: 12-240VDC, 24-240VAC
Output contact: 1-channel SPDT (1C), rated 5A@250VAC ， 5A@30VDC Rated power 150W (DC), 1250VA (AC)
Timing range: adjustable in 7 levels (0.1s/1s/10s/60s/10min/60min/10h), with a maximum of 20h
Timing accuracy: ± 0.5% (23 ℃), temperature drift ± 0.1%/℃
Response time: ≤ 10ms
LED indicator: power supply present, timer working 2 status lights
Physical and environmental parameter dimensions: 17.5mm x 90mm x 65mm (width x height x depth)
Terminal type: screw terminal, compatible with wires 0.2-2.5mm ²
Working temperature: -20 ℃ -+60 ℃
Storage temperature: -40 ℃ -+85 ℃
Relative humidity: ≤ 95% (no condensation)
Protection level: IP20
Weight: Approximately 80g
Function and authentication mode: 10 programmable modes, including delayed on/off, interval, flashing, hold, etc
Certification: CE, UL, CSA, RoHS compliant
Mechanical lifespan: ≥ 10 million cycles
Electrical lifespan (AC-15240V, 5A): ≥ 100000 cycles

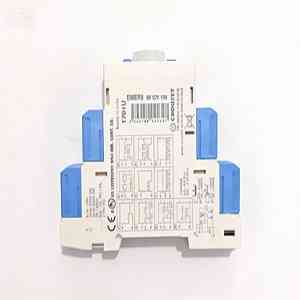

Crouzet Control Analog Timer – 88829198
