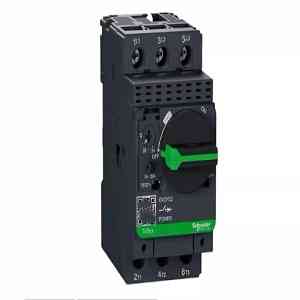

GV2P32 imported thermal magnetic motor circuit breaker

Basic information Model: GV2P32 Brand: Schneider Electric Type: 3-pole hot magnetic motor circuit breaker (manual start stop+isolation+protection) Operation method: rotating handle (ON/OFF/RESET) Installation method: 35mm DIN rail/panel Installation Protection level: IP20, IK04 Terminal type: screw clamped terminal (compatible with 1-6mm ² hard wire, 1.5-6mm ² seamless flexible wire, 1-4mm ² with wire nose flexible wire) Size: 45mm wide x 89mm high x 97mm deep Weight: about 350g Shell material: engineering plastic Electrical parameters Rated working voltage (Ue): 690V AC 50/60Hz Rated current (In): 32A Set current Range: 24-32A (Class 10 environmental compensation type thermal trip) Short circuit breaking capacity: 416A (magnetic trip) Number of poles: 3 Rated impulse withstand voltage (Uimp): 6kV Power consumption per pole: 2.5W Rated working system: Continuous working system (IEC 60947-4-1) Mechanical life: 100000 cycles Electrical life: 100000 cycles (AC-3 440V) Maximum operating frequency: 25 cycles/hour Isolation capability: Complies with IEC 60947-1, supports isolation applications Phase loss protection: Possess environmental and certification Operating temperature: -20 ℃ to+60 ℃ Storage temperature: -40 ℃ to+80 ℃ Vibration resistance: Complies with industrial standards Impact resistance: Complies with industrial standards Certification: EN/IEC 60947-2/4-1, UL, CSA, CCC, EAC, ATEX, BV Compliance: RoHS, REACH SVHC No performance and adaptation Motor power (380V three-phase): 15kW protection Function: Overload thermal protection, short circuit magnetic protection, phase loss protection, environmental compensation. Application scenarios: direct starting of small motors, manual control and isolation, suitable for pumps, fans, compressors, etc
