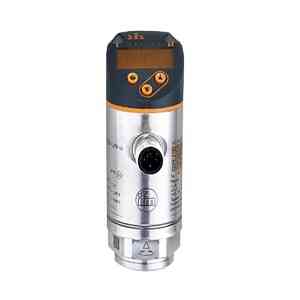

Basic information model: PN7071 (PN-250-SER14-QFRKG/US//V)
Brand: IFM Electronic
Type: Relative pressure sensor with display screen
Measurement principle: Metal diaphragm relative pressure detection
Process connection: G 1/4 internal thread
Electrical connection: M12 5-pin plug
Installation method: Threaded installation (recommended torque 25-35Nm)
Protection level: IP65/IP67
Display/operation: 3 x LED (green, pressure bar/psi/MPa)+2 x LED (yellow, switch status), button/IO Link parameter configuration
Size: Diameter approximately 42mm x Height 105mm
Weight: Approximately 0.2kg
Electrical parameters: Supply voltage: 18-30V DC (SELV/PELV)
Current consumption: ＜ 35mA
Insulation resistance: ≥ 100M Ω (500V DC)
Reverse protection: Yes
Watchdog: Integrated
Output configuration: 2-channel digital output (PNP/NPN can be configured, NO/NC can be set)
Output voltage drop: maximum 2.5V DC
Continuous output current: 150mA (200mA @ ≤ 60 ℃); 250mA@≤40℃）
Switching frequency: ＜ 170Hz
Response time:<3ms
Short circuit protection: pulse overload protection
Measurement parameter measurement range: 0-250bar (0-3620psi/0-25MPa)
Pressure type: relative pressure
Vacuum resistance: 1000mbar (0.1MPa)
Compressive strength: 500 bar
Blasting pressure: ≥ 1100bar
Medium temperature: -25-80 ℃
Switching point accuracy: ± 0.5% range
Repeatability: ± 0.1% range (temperature difference<10K)
Characteristic deviation: ± 0.25% range (BFSL)/± 0.5% range (LS)
Pressure cycle life: ≥ 100 million cycles
Communication and Function IO Link: COM2 (38.4kBaud), version 1.1, SIO mode, DeviceID 400/598
Configurable functions: hysteresis/window, output polarity, on-off delay (0-50s), damping, display unit
Programming method: button or IO Link
Environment and certification working temperature: -25-80 ℃
Storage temperature: 40-85 ℃
Anti vibration: 10-55Hz, 0.15mm; 55–150Hz，5m/s²
Impact resistance: 15g (11ms)
Certification: CE, UL, CSA, ATEX (not available for non explosion proof versions)
IFM Yifu Gate PN7071 Specifications
| Basic information model | PN7071 (PN-250-SER14-QFRKG/US//V) |
|---|---|
| Brand | IFM Electronic |
| Type | Relative pressure sensor with display screen |
| Measurement principle | Metal diaphragm relative pressure detection |
| Process connection | G 1/4 internal thread |
| Electrical connection | M12 5-pin plug |
| Installation method | Threaded installation (recommended torque 25-35Nm) |
| Protection level | IP65/IP67 |
| Display/operation | 3 x LED (green, pressure bar/psi/MPa)+2 x LED (yellow, switch status), button/IO Link parameter configuration |
| Size | Diameter approximately 42mm x Height 105mm |
| Weight | Approximately 0.2kg |
| Electrical parameters | Supply voltage: 18-30V DC (SELV/PELV) |
| Current consumption | |
| Insulation resistance | ≥ 100M Ω (500V DC) |
| Reverse protection | Yes |
| Watchdog | Integrated |
| Output configuration | 2-channel digital output (PNP/NPN can be configured, NO/NC can be set) |
| Output voltage drop | maximum 2.5V DC |
| Continuous output current | 150mA (200mA @ ≤ 60 ℃); 250mA@≤40℃） |
| Switching frequency | |
| Response time | <3ms |
| Short circuit protection | pulse overload protection |
| Measurement parameter measurement range | 0-250bar (0-3620psi/0-25MPa) |
| Pressure type | relative pressure |
About the IFM Yifu Gate PN7071
The IFM Electronic IFM Yifu Gate PN7071 is a oil drilling equipment used in industrial automation, control and power systems. It is rated at Basic information model PN7071 (PN-250-SER14-QFRKG/US//V), Brand IFM Electronic, Type Relative pressure sensor with display screen. Manufactured by IFM Electronic, this oil drilling equipment is supplied as new, original industrial-grade stock. Each unit is identified by manufacturer part number IFM Yifu Gate PN7071 for accurate procurement and cross-referencing.
Why source the IFM Yifu Gate PN7071 from HDE123
- Verified part number: every IFM Yifu Gate PN7071 is checked against its manufacturer specification before shipment.
- 24 confirmed technical parameters available on this page for engineering review.
- Global delivery with clear lead time and commercial invoice for B2B buyers.
- Fast B2B support: send us the equipment model or an existing part number and our engineers confirm compatibility before you order.
Ordering the IFM Yifu Gate PN7071
To order the IFM Electronic IFM Yifu Gate PN7071, add it to your cart and complete checkout, or use the Request a Quote form for volume purchases and replacement / cross-reference enquiries. Lead time: typically 3–10 working days for in-stock items, subject to confirmation. Worldwide shipping is available and a commercial invoice is provided for customs.
