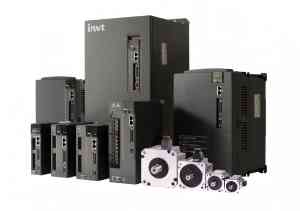

INVT:SV-DA200-2R0-4-C0

Model Definition：2R0=2kW; 4=400V class; C=CANopen; 0=standard configuration
Rated Power：2kW
Matched Motor：INVT DA200 series 2kW servo motor (e.g., SV-ML110-2R0G-4-xxx)
Input Power：3P AC 380V(-15%)~440V(+10%), 47~63Hz
Output：3-phase AC 0~Vin, 0~400Hz, rated current approx. 6.5A (subject to manual)
Overload Capacity：3 times the rated current for 3 seconds
Control Response：Current loop 2kHz, speed loop 2kHz, position loop 1kHz
Encoder Supports 23-bit absolute encoder, incremental/second encoder optional
Communication：USB and RS485 (Modbus) as standard; CANopen as standard for this model (optional for basic models)
Safety Function：STO (Safe Torque Off) optional
IP Rating IP20
