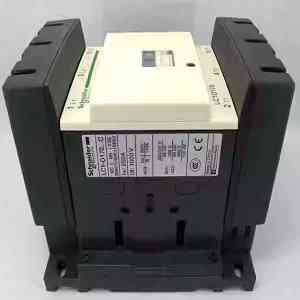

Schneider Contactor LC1D17000M7C/220V

Basic Information Model: LC1D17000M7C Brand: Schneider Series: TeSys Deca Type: 3-pole AC Contactor Main Contact: 3 normally open (3NO) Suitable Load: AC-1 (Non inductive/Micro inductive load) AC-3 (squirrel cage motor) wiring method: screw clamping terminal protection level: IP20 installation method: standard DIN rail installation size: about 100mm wide, 150mm high, 90mm deep weight: about 1.2kg electrical parameters (main circuit) rated working voltage (Ue): ≤ 1000V AC, ≤ 300V DC rated working current (Ie): AC-3 (≤ 440V, ≤ 60 ℃) 170A; AC-1 (≤ 440V, ≤ 60 ℃) 200A rated insulation voltage (Ui): 1000V AC rated impulse withstand voltage (Uimp): 8kV short-circuit connection capacity (Icm): AC-3, 1800A (1s) rated when ≤ 440V Breaking capacity (Icn): AC-3, 1700A when ≤ 440V Coil parameters (220V AC) Coil voltage: 220V AC, 50/60Hz Pull in power consumption: about 300VA (50Hz, 20 ℃) Holding power consumption: about 10VA (50Hz, 20 ℃) Pull in current: about 1.36A Holding current: about 0.045A Action time: 20-35ms for closing, 40-75ms for breaking. Coil withstand voltage: 0.8-1.15Uc (suction), 0.3-0.5Uc (release). Lifespan and operating mechanical life: 10 million times. Electrical life: AC-3 about 1 million times, AC-1 about 3 million times. Maximum operating frequency: 1200 times/hour (≤ 60 ℃). Suitable motor power: 220/240V: 55kW; 380/400V：90kW； 415/440V：100kW； 500V：110kW； 660/690V: 110kW Environmental parameters Operating temperature: -40 ℃ to 60 ℃ (60-70 ℃ requires derating) Storage temperature: -60 ℃ to 80 ℃ Relative humidity: 5% -95% (no condensation) Certification: CE, UL, CSA, IEC
