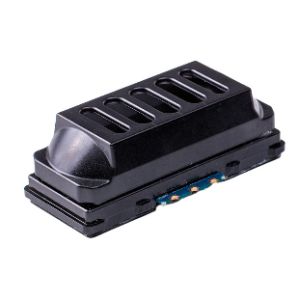

MICROceL CF CiTipeL ABU01-U0W Sensor
– Type: 3-electrode electrochemical CO sensor
– Model: ABU01-U01W (MICROceL CF / CiTipeL, Honeywell City Technology)
– Gas: Carbon Monoxide (CO)
– Measurement Range: 0–500 ppm CO
– Maximum Overload: 1500 ppm CO
– Sensitivity: 0.045 ± 0.01 µA/ppm @20°C
– T50 Response: <10 s
– T90 Response: 15 ~ 20 s typically
– Zero Offset (clean air): -2 ~ +2 ppm CO equivalent
– Max Zero Shift (+20°C ~ +40°C): 2 ppm CO equivalent
– Long-term drift: <5% signal loss per year
– Operating Temperature: -40°C ~ +50°C
– Storage Temperature: 0°C ~ 20°C
– Pressure: Atmospheric ±10%
– Humidity: 15–90% RH, non-condensing
– Housing: ABS plastic
– Mounting: PCB gold contact pins
– Orientation: Any orientation (no position sensitivity)
– Expected service life: 2 years in air
– Feature: Miniature CiTipeL package, for portable gas detectors
