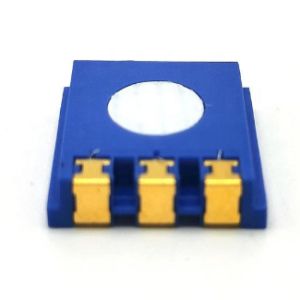

MIPEX-04-B-RX-3.1 Optical Sensor
– Type: Ultra-low power Non-Dispersive Infrared (NDIR) Optical Gas Sensor
– Model: MIPEX-04-B-RX-3.1 (MGS Technology)
– Sampling method: Diffusion
– Supply Voltage: +2.8 ~ +5.0 VDC, max 5.5 VDC
– Average Current: 25–35 µA (max 40 µA)
– Peak Current: ≤9 mA
– Interface: UART digital output (temperature compensated, linearized)
– Dimension: 52 × 24 × 18 mm
– Housing: Polycarbonate Lexan™
– Operating Temperature: -40°C ~ +60°C
– Humidity: 0 ~ 98% RH, non-condensing
– Pressure: 80 ~ 120 kPa
– Warm-up time: ≤120 s
– IP Rating: IP20 (without filter); IP54 (with MGS dust filter)
– Expected service life: ≥7 years
– Feature: Intrinsically safe, ultra-low power for portable gas clip / wireless combustible gas detector
