Structure Type: Sandwich valve, nominal size NG06 / CETOP 03
Measurement Port: G1/4
Pressure Range: Pressure relief valve for P to T circuit, with four selectable pressure ratings: 25 bar, 64 bar, 160 bar and 210 bar
Operating Pressure: Maximum operating pressure at ports P, A and B is 350 bar; maximum operating pressure at port T is 50 bar
Maximum Flow Rate: 40 L/min
Viscosity Range: 12–230 cST
Sealing Material: FPM
Mounting Type: Sandwich plate mounting
Adjustment Type: Adjustable with slotted locknut, cylinder lock or rotary knob options
Weight: 1.3 kg

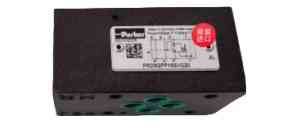

PARKER：RDM2PT21SVG
Hde Shopping Event
Sale_coupon_15
$192.00
99 in stock
99 in stock
-
Pick up from the HDE Store
Located in:Xi'an City China
-
Courier delivery
Our courier will deliver to the specified address
- Courier delivery
DHL / Fedex / UPS / By Air
