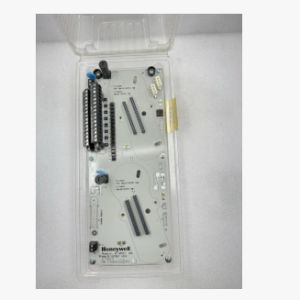

Honeywell CC-IP0101 Profibus DP Module (PGM Profibus Gateway Module)
Description: PROFIBUS DP Master Gateway Module
Part No.: CC-IP0101 (51410056-175)
Brand: Honeywell
Series: Experion PKS C300 / PlantCruise PMIO
Protocol: PROFIBUS DP V0 / V1, Class 1 Master
Baud Rate: 9.6 kbps ~ 12 Mbps configurable
Max Slaves: Up to 127 DP slaves per bus
DP Ports: 1 isolated PROFIBUS DP port
Ethernet: Dual redundant 10/100Base-T Ethernet
Power Supply: 24 VDC (18 ~ 32 VDC), Typical power consumption: 6W
Memory: 512MB RAM + 512MB Flash
Diagnostic: Bus fault, slave status, communication error alarm
Mounting: PMIO rack slot mount
Operating Temp: -40℃ ~ +70℃
Humidity: 5% ~ 90% non-condensing
Certification: UL, CE, ATEX Class I Div.2
Application: Gas engine DCS, connecting PROFIBUS DP field instruments & drives
