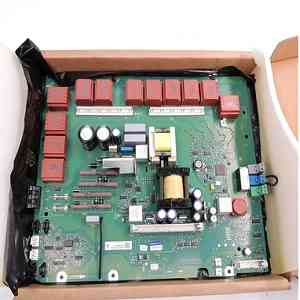

Siemens 6RY1803-1DA04 power board 690V trigger board A5F00104642

Basic information model: 6RY1803-1DA04 Device type: Siemens 6RA80 series DC speed controller Power interface board Brand: Siemens Corresponding part number: C98043-A7106-L4 Adaptation system: Siemens 6RA80 series DC speed controller, used for signal connection between power unit and control unit Core purpose: power signal transmission, trigger signal interface, functional safety related circuit adaptation, ensuring stable operation of the speed controller power module
Electrical parameter adaptation voltage: Suitable for power circuits of 6RA80 series speed controllers, supporting industrial voltage levels such as 690V. Signal types: including power trigger signals, status feedback signals, safety circuit signals, etc. Industrial standard signal interface types: including standard terminals, suitable for power interface definition of 6RA80 series speed controllers. Insulation level: meets industrial electrical insulation standards, suitable for high voltage and control circuit isolation requirements in DC speed controller cabinets. Functional safety: meets relevant functional safety standards, suitable for industrial safety circuit design
Protection level for physical and environmental parameters: IP20 (suitable for installation inside the control cabinet) Operating temperature: 0 ℃ -40 ℃ Relative humidity: 5% -95% (no condensation) Installation method: Suitable for the standard installation position of the 6RA80 series governor, can be installed in conjunction with the corresponding control unit External dimensions: Suitable for the standard size of the 6RA80 series governor interface board, easy to layout inside the cabinet Weight: about 0.2kg (slightly different depending on specific configuration)
Function and Application Core Function: Realize signal interaction between power unit and control unit, including triggering pulse transmission, fault signal feedback, safety loop control, etc. Application Scenario: DC motor speed control system in industrial automation field, suitable for use with 6RA80 series DC speed controllers in metallurgy, power, papermaking and other industries
